FibeAir IP-20C Assured

All-outdoor, compact and scalable, multi-carrier node for mission critical networks

All-outdoor, compact and scalable, multi-carrier node for mission critical networks

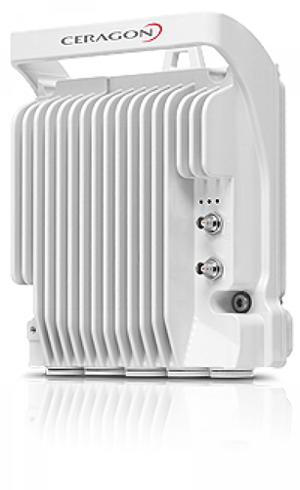

product image

overview

The FibeAir IP-20C Assured is a highly versatile compact all-outdoor wireless backhaul node, set to help you meet a wide variety of challenges throughout your network deployment. Whether your challenge is establishing a secured infrastructure with a quick network capacity growth path with no truck rolls (yes, zero truck rolls!), reducing spectrum license fees, coping with shortage of microwave frequency channels, or maintaining your data safe and your services available – the FibeAir IP-20C Assured is the solution for you.



The FibeAir IP-20C Assured is a highly versatile compact all-outdoor wireless backhaul node, set to help you meet a wide variety of challenges throughout your network deployment. Whether your challenge is establishing a secured infrastructure with a quick network capacity growth path with no truck rolls (yes, zero truck rolls!), reducing spectrum license fees, coping with shortage of microwave frequency channels, or maintaining your data safe and your services available – the FibeAir IP-20C Assured is the solution for you.



Product Features

The FibeAir IP-20C Assured serves the security and availability requirements of mission-critical networks with its enhanced feature set that provides physical security, traffic encryption, anti-malware, identity management, centralized authentication, event logging and secure product architecture and development.

Radio INFO >

6GHz to 42 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM |3.5 up to 80MHz channels| 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees.

User interfaces INFO >

Three FE/GbE interfaces and an external management connection Networking: All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | MPLS-TP-ready | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Security INFO >

FIPS 140-2 validated |Comprehensive, multi-layer security: AES-256 radio encryption | Secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | Secured architecture and software design | Advanced authentication and identification management

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Product Features

The FibeAir IP-20C Assured serves the security and availability requirements of mission-critical networks with its enhanced feature set that provides physical security, traffic encryption, anti-malware, identity management, centralized authentication, event logging and secure product architecture and development.

Radio INFO >

6GHz to 42 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM |3.5 up to 56MHz channels| 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees

User Interfaces INFO >

Three FE/GbE interfaces and an external management connection

Networking INFO >

All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | MPLS-TP-ready | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Security INFO >

Comprehensive, multi-layer security: AES-256 radio encryption | Secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | Secured architecture and software design | Advanced authentication and identification management

Operating System INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

<

Product Highlights

At the heart of FibeAir IP-20C Assured resides Ceragon’s unique multi-core chipsets, specifically designed for advanced wireless backhaul operations. With its multi-core chipset, the FibeAir IP-20C Assured allows you to continuously increase your operational efficiency and provide better quality of experience to your customers by:

  • Providing the highest radio capacity and spectral efficiency in any condition and any frequency channel size
  • Doubling wireless backhaul capacity via remote activation of another radio carrier with no site visits required – the fastest transmission network set up from planning to fulfillment offered
  • Reducing tower or roof-top equipment footprint by 50% in dual carrier configurations
  • Delivering the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – Enabling 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz
  • Deploying sites where needed, removing wireless backhaul constraints by doubling the reuse of microwave frequency channels, using Advanced Frequency Reuse technology embedded in the multi-core chipset
  • Reducing energy costs by up to 40%

Product Highlights

At the heart of FibeAir IP-20C Assured resides Ceragon’s unique multi-core chipsets, specifically designed for advanced wireless backhaul operations. With its multi-core chipset, the FibeAir IP-20C Assured allows you to continuously increase your operational efficiency and provide better quality of experience to your customers by:

  • Providing the highest radio capacity and spectral efficiency in any condition and any frequency channel size
  • Doubling wireless backhaul capacity via remote activation of another radio carrier with no site visits required – the fastest transmission network set up from planning to fulfillment offered
  • Reducing tower or roof-top equipment footprint by 50% in dual carrier configurations
  • Delivering the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – Enabling 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz
  • Deploying sites where needed, removing wireless backhaul constraints by doubling the reuse of microwave frequency channels, using Advanced Frequency Reuse technology embedded in the multi-core chipset
  • Reducing energy costs by up to 40%
