FibeAir IP-20G

Split-mount, compact edge node for all-packet and hybrid networks

Split-mount, compact edge node for all-packet and hybrid networks

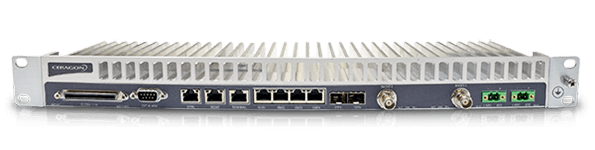

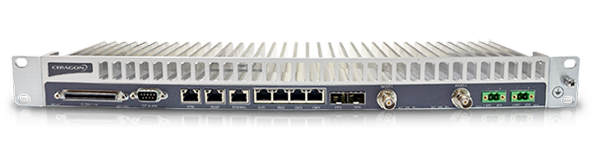

product image

overview

The FibeAir IP-20G is a split-mount edge node suitable for macrocell and microcell backhaul and delivering up to 1Gbps radio capacity to your transport network. It provides you with the simplicity that comes with deploying a very compact, fixed configuration node, and helps you meet your operational efficiency targets.

The FibeAir IP-20G’s fixed configuration simplifies installation, spare part management and maintenance. In addition, its passive cooling design suits harsh environments, increases reliability and minimizes ambient noise.

The FibeAir IP-20G operates within the entire microwave communication spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (5.8-42GHz). It also supports two built-in radio carriers with multiple high-speed data, as well as T1 interfaces.

The IP-20G is also available in external-protection configuration (1+1), which allows you to achieve and maintain your SLA targets.

The FibeAir IP-20G is a split-mount edge node suitable for macrocell and microcell backhaul and delivering up to 1Gbps radio capacity to your transport network. It provides you with the simplicity that comes with deploying a very compact, fixed configuration node, and helps you meet your operational efficiency targets.

The FibeAir IP-20G’s fixed configuration simplifies installation, spare part management and maintenance. In addition, its passive cooling design suits harsh environments, increases reliability and minimizes ambient noise.

The FibeAir IP-20G operates within the entire microwave communication spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (6-42GHz). It also supports two built-in radio carriers with multiple high-speed data, as well as E1/T1 interfaces.

The IP-20G is also available in external-protection configuration (1+1), which allows you to achieve and maintain your SLA targets.

Product Features

Equipped with an MEF 2.0 certified Carrier Ethernet engine, as well as an advanced TDM service processing engine, it allows you to deliver both IP and legacy TDM services. The product is offered with a basic security package. For a comprehensive set of security capabilities, please refer to the FibeAir IP-20 Assured Platform.

Radio INFO >

5.8GHz to 42GHz | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5-60MHz channels | Up to 1Gbps radio capacity | Up to 2 radios

User interfaces INFO >

Packet/TDM traffic transport | T1/FE/GbE interfaces

Networking INFO >

Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio units INFO >

RFU-C | RFU-HP | RFU-A

Product Features

Equipped with an MEF 2.0 certified Carrier Ethernet engine, as well as an advanced TDM service processing engine, it allows you to deliver both IP and legacy TDM services. The product is offered with a basic security package. For a comprehensive set of security capabilities, please refer to the FibeAir IP-20 Assured Platform.

Radio INFO >

6GHz to 42 GHz | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5-56MHz channels | Up to 1Gbps radio capacity | Up to 2 radios

User Interfaces INFO >

E1/FE/GbE interfaces

Networking INFO >

Packet/TDM traffic transport |Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Operating System INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio units INFO >

RFU-C | RFU-HP
