FibeAir IP-20GX Assured

Split-mount, extendable edge node for all-packet and hybrid mission-critical networks

Split-mount, extendable edge node for all-packet and hybrid mission-critical networks

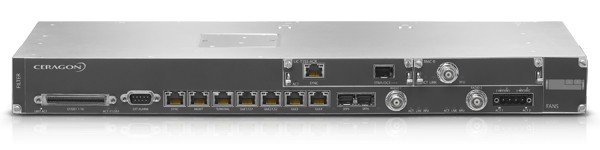

product image

overview

The FibeAir IP-20GX Assured is an extendable, split-mount edge node that delivers multi-Gbps radio capacity to your mission-critical network. It provides you with the simplicity that comes with deploying a very compact edge node, helping you meet your operational efficiency targets. It also provides the flexibility you need to expand the node with more radio or line interfaces to meet the growing demands of your network.

The FibeAir IP-20GX Assured operates within the entire microwave and millimeter-wave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (6-86GHz). It supports 2 built-in radio carriers with multiple high-speed data, and E1/T1 interfaces. It also comes with 2 universal slots which allow you to extend the node to support up to 4 radio carriers with additional high-speed data (1GE, FE) E1/T1 and STM-1 interface cards.

The FibeAir IP-20GX Assured is an extendable, split-mount edge node that delivers multi-Gbps radio capacity to your mission-critical network. It provides you with the simplicity that comes with deploying a very compact edge node, helping you meet your operational efficiency targets. It also provides the flexibility you need to expand the node with more radio or line interfaces to meet the growing demands of your network.

The FibeAir IP-20GX Assured operates within the entire microwave and millimeter-wave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (6-86GHz). It supports 2 built-in radio carriers with multiple high-speed data, and E1/T1 interfaces. It also comes with 2 universal slots which allow you to extend the node to support up to 4 radio carriers with additional high-speed data (1GE, FE) E1/T1 and STM-1 interface cards.

Product Features

Equipped with a MEF 2.0 certified Carrier Ethernet engine, as well as advanced TDM services processing engine, the FibeAir IP-20GX Assured allows you to deliver both IP and legacy TDM services. It serves the security and availability requirements of mission-critical networks with its enhanced feature set that provides physical security, traffic encryption, anti-malware, identity management, centralized authentication, event logging and secure product architecture and development.

Radio INFO >

GHz to 86 GHz | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5-60MHz channels | Up to 2Gbps radio capacity | Up to 4 radios

User interfaces INFO >

E1/STM-1/FE/GbE interfaces

Networking INFO >

Packet/TDM traffic transport | Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | MPLS-TP-ready | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Security INFO >

FIPS 140-2 validated |Comprehensive, multi-layer security: AES-256 radio encryption | Secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | Secured architecture and software design | Advanced authentication and identification management

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio units INFO >

RFU-C | RFU-HP | RFU-A

Product Features

Equipped with a MEF 2.0 certified Carrier Ethernet engine, as well as advanced TDM services processing engine, the FibeAir IP-20GX Assured allows you to deliver both IP and legacy TDM services. It serves the security and availability requirements of mission-critical networks with its enhanced feature set that provides physical security, traffic encryption, anti-malware, identity management, centralized authentication, event logging and secure product architecture and development.

Radio INFO >

GHz to 86 GHz | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5-56MHz channels | Up to 2Gbps radio capacity | Up to 4 radios

User Interfaces INFO >

E1/STM-1/FE/GbE interfaces

Networking INFO >

Packet/TDM traffic transport | Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | MPLS-TP-ready | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Security INFO >

Comprehensive, multi-layer security: AES-256 radio encryption | Secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | Secured architecture and software design | Advanced authentication and identification management

Operating System INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio units INFO >

RFU-C | RFU-HP
