IP-50E

20Gbps universal E-band radio

20Gbps universal E-band radio

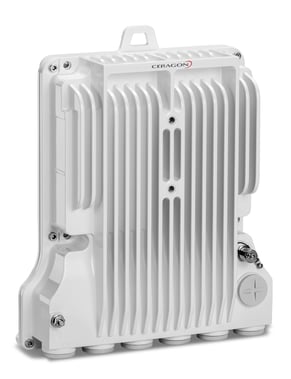

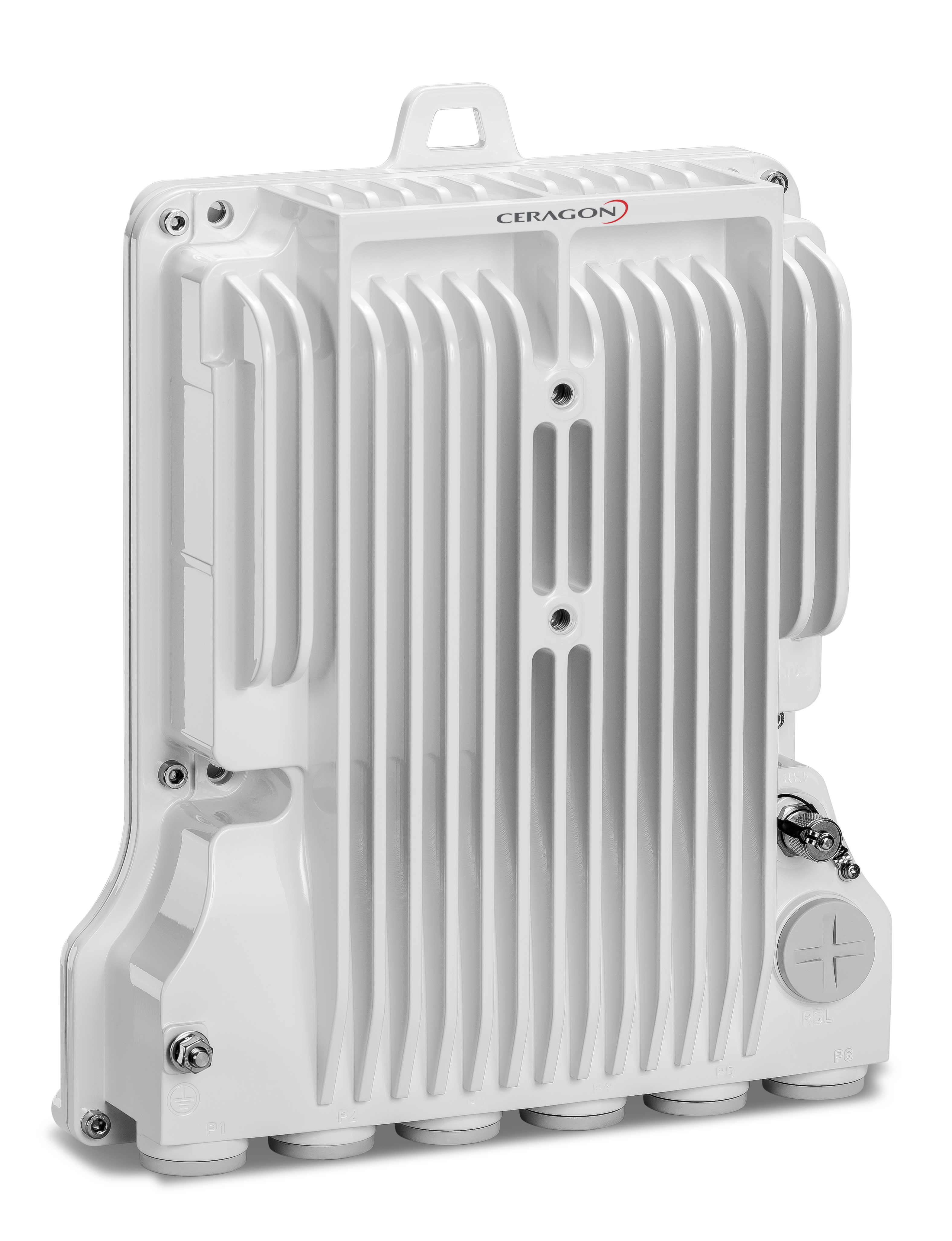

product image

overview

The IP-50E universal E-band radio introduces ultra-high capacity of up to 20Gbps to your network, supporting a pay-as-you-grow strategy with up to two units in XPIC configuration. Wherever you need fiber-like capacity for fronthaul, backhaul or wireless access applications, the IP-50E is your cost-efficient, easy-to-deploy fiber-replacement solution.

The IP-50E also allows extended E-band reach with no compromise on availability, thanks to its unique multiband capability. Using layer-1 carrier bonding, the IP-50E enables you to combine this high-capacity carrier with any additional microwave, fiber or leased line connection, thereby insuring your high-priority service offering meets its SLA target.

Combined with Ceragon’s  IP-50C or IP-20C radio and a multiband antenna, you can achieve a compact, all-outdoor, direct-mount 3-carrier solution (single-carrier E-band + two-carrier microwave). This saves on tower load and shelter requirements while simplifying installation, allowing faster time to market, and enhancing operational efficiency.

The IP-50E universal E-band radio introduces ultra-high capacity of up to 20Gbps to your network, supporting a pay-as-you-grow strategy with up to two units in XPIC configuration. Wherever you need fiber-like capacity for fronthaul, backhaul or wireless access applications, the IP-50E is your cost-efficient, easy-to-deploy fiber-replacement solution.

The IP-50E also allows extended E-band reach with no compromise on availability, thanks to its unique multiband capability. Using layer-1 carrier bonding, the IP-50E enables you to combine this high-capacity carrier with any additional microwave, fiber or leased line connection, thereby insuring your high-priority service offering meets its SLA target.

Combined with Ceragon’s  IP-50C or IP-20C radio and a multiband antenna, you can achieve a compact, all-outdoor, direct-mount 3-carrier solution (single-carrier E-band + two-carrier microwave). This saves on tower load and shelter requirements while simplifying installation, allowing faster time to market, and enhancing operational efficiency.

Radio INFO >
  • Radio capacity: 20Gbps (2+0 XPIC configuration, utilizing two units)
  • Supported frequency bands: 71-86GHz
  • Supported channel spacing:62.5-2000MHz
  • ACM steps: 10, BPSK-1024QAM
  • Antenna offering: parabolic, integrated flat panel (FCC class-3 compliant), multiband
USER INTERFACE INFO >
  • 4 x 1/10GbE or 40GbE traffic interface (QSFP+)
  • 1/10GbE traffic interface (SFP+, CPRI, eCPRI)
  • 1GbE traffic interface (SFP) or 1/2.5GbE multiband port
  • 1GbE management/PoE port
NETWORKING INFO >
  • Networking capacity: 32Gbps
  • Layer-1 carrier bonding: supports XPIC and multiband with any additional layer-1 connection
  • Networking: integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 compliant | up to 30% more capacity using header deduplication | carrier-grade service resiliency (G.8032, MSTP) | SyncE and 1588 synchronization | ITU-T Y.1731 fault and performance management (MEF 35) | SDN | layer 3 (using IP-50FX)
  • Security: AES radio encryption | secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | secured architecture and software design |advanced authentication and identification management
Radio INFO >
  • Radio capacity: 20Gbps (2+0 XPIC configuration, utilizing two units)
  • Supported frequency bands: 71-86GHz
  • Supported channel spacing: 62.5-2000MHz
  • ACM steps: 10, BPSK-1024QAM
  • Antenna offering: parabolic, integrated flat panel (FCC class-3 compliant), multiband
USER INTERFACE INFO >
  • 4 x 1/10GbE or 40GbE traffic interface (QSFP+)
  • 1/10GbE traffic interface (SFP+, CPRI, eCPRI)
  • 1GbE traffic interface (SFP) or 1/2.5GbE multiband port
  • 1GbE management/PoE port
Networking INFO >
  • Networking capacity: 32Gbps
  • Layer-1 carrier bonding: supports XPIC and multiband with any additional layer-1 connection
  • Networking: integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 compliant | up to 30% more capacity using header deduplication | carrier-grade service resiliency (G.8032, MSTP) | SyncE and 1588 synchronization | ITU-T Y.1731 fault and performance management (MEF 35) | SDN | layer 3 (using IP-50FX)
  • Security: AES radio encryption | secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | secured architecture and software design |advanced authentication and identification management
