IP-50FX

Disaggregated wireless backhaul router

Disaggregated wireless backhaul router

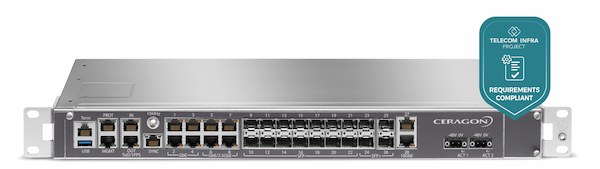

product image

overview

The IP-50FX wireless backhaul router combines a cell site router with radio-aware features that support the IP-50C and IP-50E radios, as well as any Ethernet-connected radio or fiber. Its high switching capacity and wide port density make it an excellent fit for any cell site or aggregation site that requires ultra-high capacity, multi-directional functionality, and switching/routing capabilities.

The IP 50FX utilizes radio-aware networking capabilities, such as layer-1 carrier bonding over Ethernet, SyncE, 1588-TC/BC and ETH-BN. This enables the router to serve as a revolutionary solution for any multi-carrier requirement – you can create a high-capacity trunk with any outdoor radio connected via Ethernet. The IP-50FX leverages software and hardware disaggregation to create an ultra-scalable platform. You can increase capacity and interfaces by simply choosing another hardware variant while keeping all software functionality and product look & feel intact

When multi-carrier configuration calls for more than four carriers, with layer-1 carrier bonding for best utilization of the spectral resources, the IP-50FX is your answer. The wireless backhaul router can connect to any combination of Ethernet-connected radio 8+0 constellation and act as an indoor unit, performing layer-1 carrier bonding.

The IP-50FX wireless backhaul router combines a cell site router with radio-aware features that support the IP-50C and IP-50E radios, as well as any Ethernet-connected radio or fiber. Its high switching capacity and wide port density make it an excellent fit for any cell site or aggregation site that requires ultra-high capacity, multi-directional functionality, and switching/routing capabilities.

The IP 50FX utilizes radio-aware networking capabilities, such as layer-1 carrier bonding over Ethernet, SyncE, 1588-TC/BC and ETH-BN. This enables the router to serve as a revolutionary solution for any multi-carrier requirement – you can create a high-capacity trunk with any outdoor radio connected via Ethernet. The IP-50FX leverages software and hardware disaggregation to create an ultra-scalable platform. You can increase capacity and interfaces by simply choosing another hardware variant while keeping all software functionality and product look & feel intact

When multi-carrier configuration calls for more than four carriers, with layer-1 carrier bonding for best utilization of the spectral resources, the IP-50FX is your answer. The wireless backhaul router can connect to any combination of Ethernet-connected radio 8+0 constellation and act as an indoor unit, performing layer-1 carrier bonding.

USER INTERFACE INFO >
  • Interfaces in basic configuration:
    • 6x10GbE (SFP+)
    • 16x1GbE (SFP)
NETWORKING INFO >
  • Networking capacity: 64Gbps
  • Layer-1 carrier bonding: Up to 16+0
  • Quality of service: 3 levels of HQoS
  • OAM functionality: ETH-BN according to ITUT G.8013/Y.1731
  • Open SW standards: complies with ONL/ONIE layer-1 carrier bonding, supports multiband with any additional layer-1 connection
USER INTERFACE INFO >
  • Interfaces in basic configuration:
    • 6x10GbE (SFP+)
    • 16x1GbE (SFP)
Networking INFO >
  • Networking capacity: 64Gbps
  • Layer-1 carrier bonding: Up to 16+0
  • Quality of service: 3 levels of HQoS
  • OAM functionality: ETH-BN according to ITUT G.8013/Y.1731
  • Open SW standards: complies with ONL/ONIE layer-1 carrier bonding, supports multiband with any additional layer-1 connection
