    FR2 Bands. 1 Gbps. Compact Radio.

    OVERVIEW

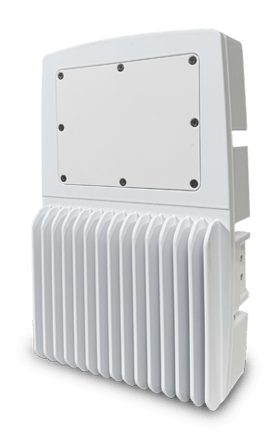

    The Ceragon IP-100FR2 is a compact, high-capacity dual-band radio operating in licensed 5G FR2 spectrum. (28 GHz and 39 GHz), enabling operators to leverage protected bands to deliver reliable Gbps throughout. Designed for short-haul, building-to-building campus connectivity, it delivers up to 1 Gbps with a minimal footprint.

    Equipped with advanced adaptive coding and modulation, the IP-100FR2 ensures hitless performance and continuous, real-time link optimization. It’s ideal for fiber extension, enterprise connectivity, and high-availability access links.


    PERFECT FOR

    • Building-to-building connectivity
    • Campus connectivity
    • Multi Dwelling Unit (MDU) connectivity



    Why Choose IP-100FR2?

    + Ultra-High Capacity — Up to 1 Gbps over the air
    + Hitless Performance — Real-time optimization with advanced adaptive coding and modulation
    +  Flexible Deployment — integrated flat-panel antenna for fast installation

    + Future Ready – Remote upgrades with zero-touch rolls

    + Carrier-Grade Reliability – hardened, robust design


    TECHNICAL OVERVIEW

    FEATURE SPECIFICATION
    Capacity 1 Gbps over the air
    Frequency Ranges 28 GHz TDD and 39 GHz TDD
    Channel Bandwidth 100/200/400 MHz
    Modulation Up to 1024 QAM
    Antenna Integrated Flat Panel Antenna
    Networking IEEE 802.1d Transparent Bridging
    IEEE 802.1ad Provider Bridge
    IEEE 802.1q Virtual LANs
    Interfaces 100MbE, 1 GbE copper (802.3an) with PoE-in
    Dimensions 245 mm x 156 mm x 63 mm / 9.65 in x 6.14 in x 2.48 in
    Weight   1.8 Kg /3.9 lbs.
    Operating Temperature  (-45 °C ÷ +55 °C) /49 °F ÷ +131 °F
    Input Power 48 VDC PoE or 100-240 VAC



    KEY DIFFERENTIATORS

    • Unmatched capacity: 1 Gbps over the air
    • Future-ready architecture: with remote upgrades- no truck roll
    • Carrier-grade hardened design: for demanding envionments
    • Versatility Deployment: for building-to-building, campus and enterprise connectivity

    Technical Overview

    • Capacity
    • Frequency Ranges
    • Channel Bandwidth
    • Modulation
    • Deployment Options
    • Networking
    • Interfaces
    • Dimensions
    • Weight
    • Operating Temperature
    • Input Power
    • Capacity:
      1 Gbps over the air
    • Frequency Ranges:
      28 GHz TDD and 39 GHz TDD
    • Channel Bandwidth:
      100 MHz, 200 MHz, 400 MHz
    • Modulation:
      Up to 1024 QAM
    • Deployment Options:
      Integrated Flat Panel Antenna
    • Networking:
      IEEE 802.1d Transparent Bridging
      IEEE 802.1ad Provider Bridge
      IEEE 802.1q Virtual LANs
    • Interfaces:
      100MbE, 1GbE copper (802.3an)
      with PoE-in
    • Dimensions:
      245 mm x 156 mm x 63 mm /
      9.65 in x 6.14 in x 2.48 in
    • Weight:
      3.9 lbs. / 1.8 Kg
    • Operating Temperature:
      49 °F ÷ +131 °F
      (-45 °C ÷ +55 °C)
    • Input Power:
      48 VDC PoE or 100-240 VAC
