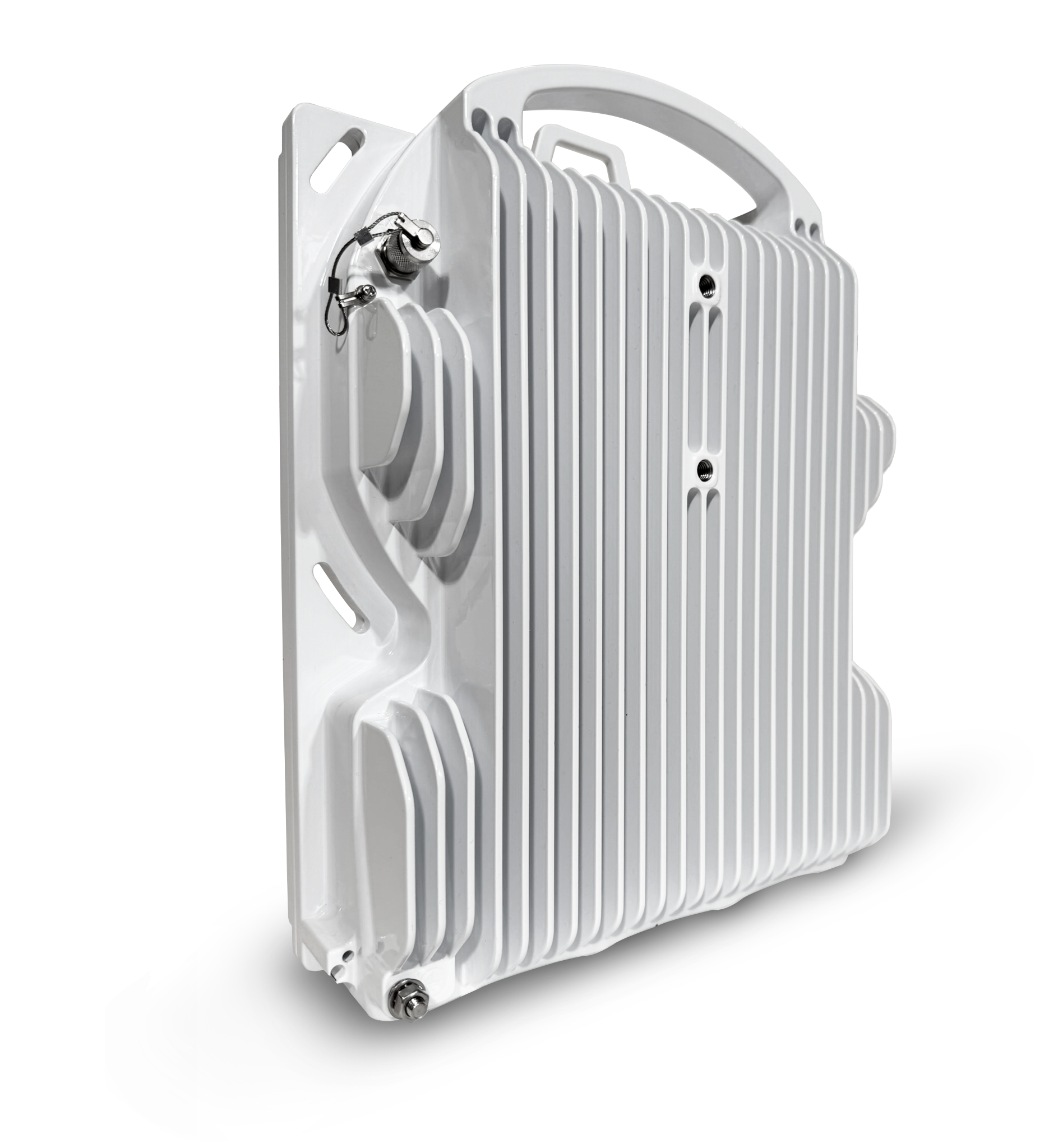

IP-100E

overview

The IP-100E delivers an industry-leading capacity of up to 25 Gbps in 2+0 configuration in a single unit, and up to 40 Gbps using multi-box, making it the most advanced E-band radio available. It achieves exceptional multiband performance of up to 29 Gbps, and features an optional antenna stabilizer supporting 2 ft. and 3 ft. antennas, providing an optimal mmW solution for digital transformation.

The IP-100E provides an ideal solution for anyone looking for future-proof, high-capacity links. The IP-100E can provide the highest capacity available today, or as a future-proof ‘1-click-double-capacity’ option, allowing for future remote capacity increases without the need to install a new radio.

The IP-100E also allows for longer links by splitting the capacity over the two radio carriers, which will increase the system gain and allow for longer links.

The IP-100E includes an optional built-in OMT or splitter for maximum deployment flexibility, allowing you to use the IP-100E  as two carriers in any desired configuration.

Key features include innovative adaptive coding modulation and bandwidth (ACMB) technology, enabling hitless transmission through dynamic modulation and bandwidth adjustment for challenging conditions.

With dual 25 GbE interfaces, the IP-100E provides future-proof Layer 2 connectivity. It serves diverse applications from macro site backhaul to small cell connectivity and building-to-building links, making it ideal for mobile carriers, ISPs, and enterprise networks.
