High-Capacity Aggregation in a Compact Form
Overview

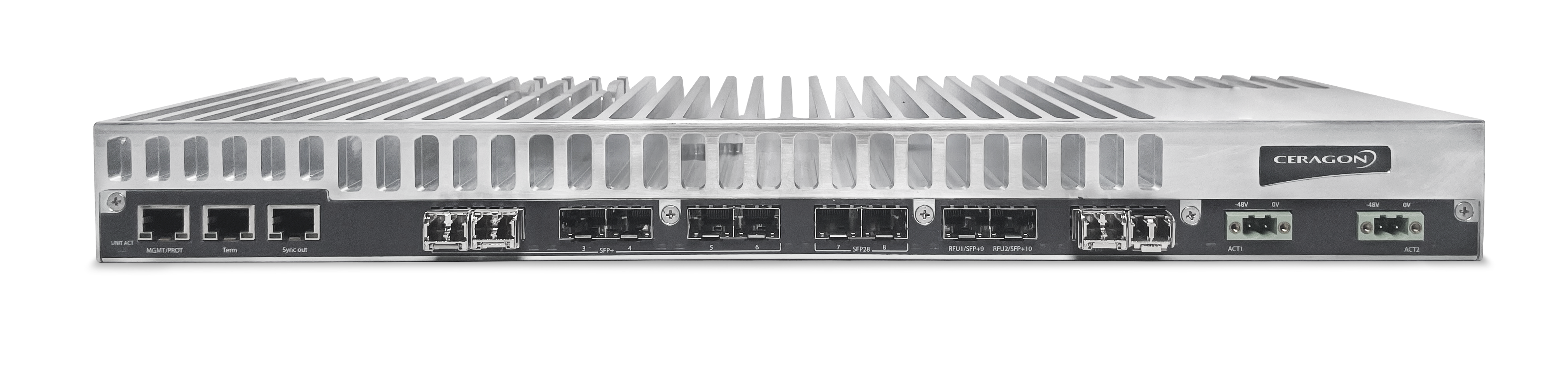

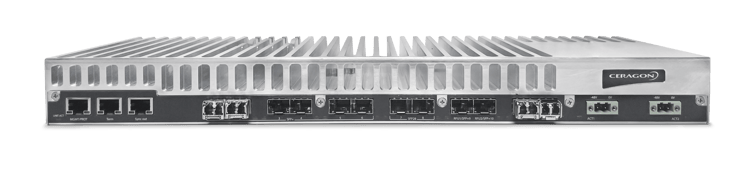

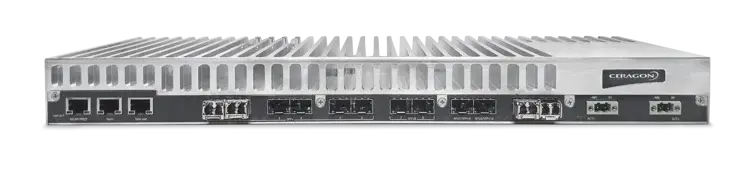

The IP-50GP series is comprised of compact 1RU indoor units purpose-built for edge/tail first and second aggregation sites in Telco, WISP, and private networks. Featuring fanless conduction cooling, high port density, and carrier-grade availability, the units deliver powerful performance in a space-efficient design.
With support for multiple 1/10/25 GbE interfaces and advanced features (SyncE, 1588 TC/BC, and ETH-BN), the IP-50GP series enables high-capacity, multi-carrier deployments with precise synchronization and bandwidth optimization. Up to four radio interfaces connect seamlessly to RFU-D, RFU-D-HP, RFU-SX, and AODU units, supporting up to eight carriers via efficient Layer 1 aggregation. Streamlined by design, the IP-50GP series simplifies both rollout and scaling.
Perfect for
- Edge/tail first and second aggregation for Telcos and WISPs
- Multi-carrier, multiband deployments that require synchronization
- High-capacity transport for private and enterprise networks
- Cost-efficient, compact deployments in space-constrained locations
|
FEATURES |
IP-50GP |
IP-50GPX |
|---|---|---|
| Radio Support | RFU-D (6–42 GHz) RFU-D-HP (high power) RFU-SX AODUs |
RFU-D (6–42 GHz) RFU-D-HP (high power) RFU-SX AODUs |
| Radio Configuration | Up to 8+0 | Up to 4+0 |
| Networking Capacity | Up to 198 Gbps | Up to 80 Gbps |
| L1 Aggregation | Up to 40 Gbps | Up to 20 Gbps |
| User Interfaces | 2 x 1/10/25 GbE (SFP28) 6 x 1/10 GbE (SFP+) 4 x radio ports |
4 x 1/10 GbE (SFP+) 2 x radio ports |
| Power Feed | Dual feed | Single feed |
| Switching & Resiliency | Integrated Carrier Ethernet switching | Integrated Carrier Ethernet switching |
| Operating System | Unified CeraOS | Unified CeraOS |
| Form Factor | Compact 1RU indoor unit | Compact 1RU indoor unit |
