Siklu by Ceragon
EtherHaul Hundred Series

    Ideal mmW solutions for street level applications such as video surveillance and public WiFi backhaul


    The Siklu by Ceragon EtherHaul™ Hundred Series was designed to have a very small footprint, both light-weight and very small in size. These two attributes are critically important for use cases that require street level deployment.

    This family of 1Gbps, TDD-based radios support a range of capacities and corresponding distances. The Hundred series products all utilize our patented OFDM Modem, designed specifically for mmWave at
    60 – 70/80GHz.

    The Hundred series was designed to provide high quality construction and performance via one of the smallest Gbps radios in the market. Another key design goal was to enable installation and support by anyone, with minimal training. The small footprint greatly simplifies site acquisition and installation, while supporting mission critical network connectivity.

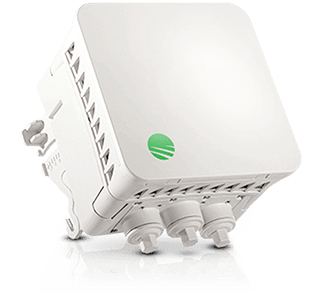

    Siklu EtherHaul

    Despite the small size, superior engineering delivers up to 1Gbps throughput over distance up to 1.6 miles (2.6km), with a very high MTBF. The series also features optional integrated timing over packet 1588v2 and SyncE with SSM schemes, enabling reliable and accurate mobile backhaul synchronization. In addition, the series supports prioritized payloads using hitless adaptive modulation, synced with 8 levels of QoS.​

    The EtherHaul™ Hundred Series delivers interference-free operation in the 60GHz band (EH-600) and 70GHz band (EH-710).

    The EH-600 provides wide frequency support from 57GHz to 66GHz in a single product and its pencil width beams and 11x non-overlapping, user-selectable channels yield the industry’s highest spectrum re-use factor.

    The EH-710 provides more than 5GHz of spectrum in the 70GHz band and its pencil width beams and 32 non-overlapping, user-selectable channels yield the industry’s highest scalability

    The EtherHaul™ Hundred Series enables flexible topology and provides multiple interfaces; the series features a built-in layer 2 Ethernet switch, QoS and 3x1G Base-T ports, as well as dual PoE out for simplifying powering of cascaded radios, cameras and other devices.


    Contact us for details on the EtherHaulTM 710, 600 & 614

    EtherHaul Hundred Series Installation Guide
