FibeAir IP-20C-HP

All-outdoor, high-power, All-IP multicore node

All-outdoor, high-power, All-IP multicore node

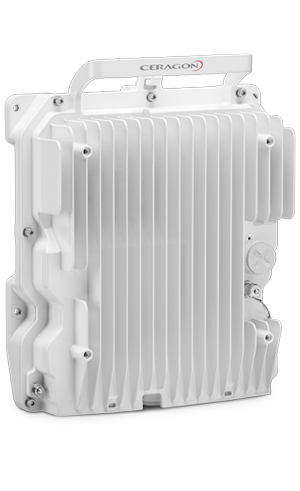

product image

overview

The FibeAir IP-20C-HP is a high-power, compact and all-outdoor wireless backhaul node that suits any network deployment scenario with long reach requirements, from aggregation sites to remote small cell backhaul, and is designed to help you meet a wide variety of challenges throughout your network deployment.

The FibeAir IP-20C-HP operates in the 6GHz and 11GHz bands.



The FibeAir IP-20C-HP is a high-power, compact and all-outdoor wireless backhaul node that suits any network deployment scenario with long reach requirements, from aggregation sites to remote small cell backhaul, and is designed to help you meet a wide variety of challenges throughout your network deployment.

The FibeAir IP-20C-HP operates in the 6GHz and 11GHz bands.



Product Features

The FibeAir IP-20C-HP is an all-packet point-to-point wireless backhaul nodeand is MEF 2.0 certified. It is offered with a basic security package.

Radio INFO >

6GHz to 11 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM |3.5 up to 60MHz channels| 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees | Advanced Space Diversity – saving 25% of radios and antennas in SD configurations

User interfaces INFO >

Three FE/GbE interfaces and an external management connection

Networking INFO >

All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Product Features

The FibeAir IP-20C-HP is an all-packet point-to-point wireless backhaul nodeand is MEF 2.0 certified. It is offered with a basic security package.

Radio INFO >

6GHz to 11 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM |3.5 up to 56MHz channels| 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees | Advanced Space Diversity – saving 25% of radios and antennas in SD configurations

User Interfaces INFO >

Three FE/GbE interfaces and an external management connection

Networking INFO >

All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

<

PRODUCT HIGHLIGHTS

With its multicore technology, the FibeAir IP-20C-HP allows you to continuously increase your operational efficiency and provide better quality of experience to your customers:

  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required
  • Deliver the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – enabling 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz
  • Deploy sites where needed, removing congested wireless backhaul constraints by doubling the reuse of microwave frequency channels and using Advanced Frequency Reuse technology embedded in the icore technology
  • Improve system gain with 35dBm Tx power
  • Reduce energy costs by up to 40%
  • Reduce tower equipment footprint by 50% in dual carrier configurations and high-power radios

PRODUCT HIGHLIGHTS

With its multicore technology, the FibeAir IP-20C-HP allows you to continuously increase your operational efficiency and provide better quality of experience to your customers:

  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required
  • Deliver the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – enabling 1Gbps radio capacity over a single 30MHz channel or 2Gbps over a single 60MHz
  • Deploy sites where needed, removing congested wireless backhaul constraints by doubling the reuse of microwave frequency channels and using Advanced Frequency Reuse technology embedded in the icore technology
  • Improve system gain with 35dBm Tx power
  • Reduce energy costs by up to 40%
  • Reduce tower equipment footprint by 50% in dual carrier configurations and high-power radios
