FibeAir IP-20F

Split-mount, multicore edge node

Split-mount, multicore edge node

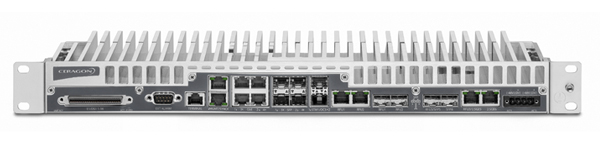

product image

overview

The FibeAir IP-20F is a split-mount edge node that delivers multiple Gbps radio capacity to your transport network, making it suitable for both macrocell and microcell backhaul scenarios in LTE, LTE-Advanced, LTE-Advanced pro and 5G mobile network. Based on Ceragon’s unique multicore technology, the IP-20F provides you with the simplicity of deploying a very compact, fixed configuration node, and the benefits of resolving your wireless backhaul challenges with less resources.

The FibeAir IP-20F’s fixed configuration simplifies installation, spare part management and maintenance. In addition, its passive cooling design suits harsh environments, increases reliability and minimizes ambient noise.

The FibeAir IP-20F operates within the entire microwave and millimeterwave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (4-86GHz). It also supports three built-in radio interfaces with multiple high-speed data, as well as TDM interfaces.

The IP-20F additionally supports external-protection configuration (1+1), which allows you to achieve and maintain your SLA targets.

The FibeAir IP-20F is a split-mount edge node that delivers multiple Gbps radio capacity to your transport network, making it suitable for both macrocell and microcell backhaul scenarios in LTE, LTE-Advanced, LTE-Advanced pro and 5G mobile network. Based on Ceragon’s unique multicore technology, the IP-20F provides you with the simplicity of deploying a very compact, fixed configuration node, and the benefits of resolving your wireless backhaul challenges with less resources.

The FibeAir IP-20F’s fixed configuration simplifies installation, spare part management and maintenance. In addition, its passive cooling design suits harsh environments, increases reliability and minimizes ambient noise.

The FibeAir IP-20F operates within the entire microwave and millimeterwave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (4-86GHz). It also supports three built-in radio interfaces with multiple high-speed data, as well as TDM interfaces.

The IP-20F additionally supports external-protection configuration (1+1), which allows you to achieve and maintain your SLA targets.

Product Features

Equipped with an MEF 2.0 certified Carrier Ethernet engine, as well as an advanced TDM service processing engine, the IP-20F allows you to deliver both IP and legacy TDM services. The product is offered with a basic security package. For a comprehensive set of security capabilities, please refer to the FibeAir IP-20 Assured Platform.

Radio INFO >

4GHz to 86 GHz | Seamless 12-step hitless ACM | BPSK–4096QAM | 3.5-112MHz channels | Up to 3 radios

User interfaces INFO >

E1/T1, STM-1/OC-3 and FE/GbE/2.5GBE interfaces

Networking INFO >

Packet/TDM traffic transport |Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers |

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio Units INFO >

RFU-D | RFU-S | RFU-E | RFU-D-HP

Product Features

Equipped with an MEF 2.0 certified Carrier Ethernet engine, as well as an advanced TDM service processing engine, the IP-20F allows you to deliver both IP and legacy TDM services. The product is offered with a basic security package. For a comprehensive set of security capabilities, please refer to the FibeAir IP-20 Assured Platform.

Radio INFO >

4GHz to 86 GHz | Seamless 12-step hitless ACM | BPSK–4096QAM | 3.5-112MHz channels | Up to 3 radios

User Interfaces INFO >

E1/T1, STM-1/OC-3 and FE/GbE/2.5GBE interfaces

Networking INFO >

Packet/TDM traffic transport |Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers |

Operating System INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio Units INFO >

RFU-D | RFU-S | RFU-E | RFU-D-HP

<

PRODUCT HIGHLIGHTS:

  • Leverage the benefits of Ceragon’s unique multicore technology with multicore RF units: RFU-D, RFU-D-HP
  • Provide the highest radio capacity and spectral efficiency in any condition and any frequency channel size (up to 112MHz)
  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required – the fastest transmission network setup from planning to fulfillment
  • Reduce tower or roof-top equipment footprint by 50% in dual carrier configurations
  • Deploy sites where needed, removing wireless backhaul constraints by doubling the reuse of microwave frequency channels, using Advanced Frequency Reuse technology embedded in Ceragon’s multicore technology
  • Optimize E-Band aggregation sites, supporting TDM over E-Band and enhancing existing microwave links with E-Band

PRODUCT HIGHLIGHTS:

  • Leverage the benefits of Ceragon’s unique multicore technology with multicore RF units: RFU-D, RFU-D-HP
  • Provide the highest radio capacity and spectral efficiency in any condition and any frequency channel size (up to 112MHz)
  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required – the fastest transmission network setup from planning to fulfillment
  • Reduce tower or roof-top equipment footprint by 50% in dual carrier configurations
  • Deploy sites where needed, removing wireless backhaul constraints by doubling the reuse of microwave frequency channels, using Advanced Frequency Reuse technology embedded in Ceragon’s multicore technology
  • Optimize E-Band aggregation sites, supporting TDM over E-Band and enhancing existing microwave links with E-Band
