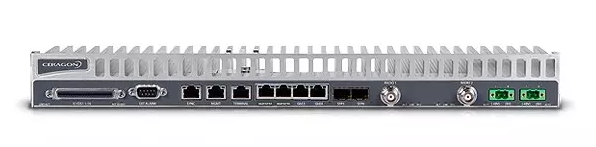

FibeAir IP-20G Assured

Split-mount, compact edge node for all-packet and hybrid mission-critical networks

Split-mount, compact edge node for all-packet and hybrid mission-critical networks

product image

overview

The FibeAir IP-20G is a split-mount edge node that delivers up to 1Gbps radio capacity to your mission-critical network. It provides you with the simplicity that comes with deploying a very compact, fixed configuration node, helping you meet your operational efficiency targets.

The FibeAir IP-20G Assured fixed configuration simplifies installation, spare part management and maintenance. What’s more, its passive cooling design suits harsh environments, increases reliability and minimizes ambient noise. The FibeAir IP-20G Assured operates within the entire microwave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (6-42GHz). It also supports 2 built-in radio carriers with multiple high-speed data, as well as E1/T1 interfaces.

The FibeAir IP-20G is a split-mount edge node that delivers up to 1Gbps radio capacity to your mission-critical network. It provides you with the simplicity that comes with deploying a very compact, fixed configuration node, helping you meet your operational efficiency targets.

The FibeAir IP-20G Assured fixed configuration simplifies installation, spare part management and maintenance. What’s more, its passive cooling design suits harsh environments, increases reliability and minimizes ambient noise. The FibeAir IP-20G Assured operates within the entire microwave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (6-42GHz). It also supports 2 built-in radio carriers with multiple high-speed data, as well as E1/T1 interfaces.

Product Features

Equipped with an MEF 2.0 certified Carrier Ethernet engine, as well as an advanced TDM service processing engine, the FibeAir IP-20G Assured allows you to deliver both IP and legacy TDM services. It serves the security and availability requirements of mission-critical networks with its enhanced feature set that provides physical security, traffic encryption, anti-malware, identity management, centralized authentication, event logging and secure product architecture and development.

Radio INFO >

6GHz to 42 GHz | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5-56MHz channels | Up to 1Gbps radio capacity | Up to 2 radios

User interfaces INFO >

Packet/TDM traffic transport | T1/FE/GbE interfaces

Networking INFO >

Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | MPLS-TP-ready | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Security INFO >

FIPS 140-2 validated | Comprehensive, multi-layer security: AES-256 radio encryption | Secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | Secured architecture and software design | Advanced authentication and identification management

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio units INFO >

RFU-C | RFU-HP | RFU-A

Product Features

Equipped with an MEF 2.0 certified Carrier Ethernet engine, as well as an advanced TDM service processing engine, the FibeAir IP-20G Assured allows you to deliver both IP and legacy TDM services. It serves the security and availability requirements of mission-critical networks with its enhanced feature set that provides physical security, traffic encryption, anti-malware, identity management, centralized authentication, event logging and secure product architecture and development.

Radio INFO >

6GHz to 42 GHz | Seamless 10-step hitless ACM | QPSK–2048QAM | 3.5-60MHz channels | Up to 1Gbps radio capacity | Up to 2 radios

User interfaces INFO >

Packet/TDM traffic transport | T1/FE/GbE interfaces

Networking INFO >

Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | MPLS-TP-ready | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Security INFO >

Comprehensive, multi-layer security: AES-256 radio encryption | Secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | Secured architecture and software design | Advanced authentication and identification management

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Radio units INFO >

RFU-C | RFU-HP
