FibeAir IP-20C

All-outdoor, compact, all-IP multicore node

All-outdoor, compact, all-IP multicore node

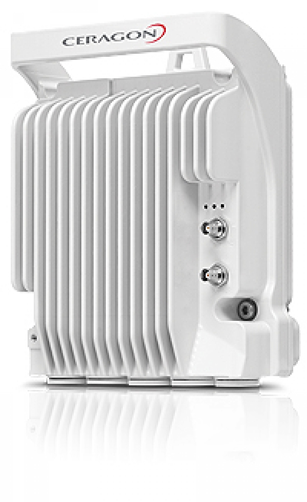

product image

overview

The FibeAir IP-20C is a highly versatile, compact and all-outdoor wireless backhaul node that suits any network deployment scenario, from aggregation sites to small cell backhaul, at LTE, LTE-Advanced pro and 5G mobile network, as well as any vertical application, and is designed to help you meet a wide variety of challenges throughout your network deployment.

The FibeAir IP-20C operates within the entire microwave communication spectrum, offering high spectral efficiency across licensed and license-exempt microwave communications frequency bands (6-42GHz).

With its multicore technology, the FibeAir IP-20C allows you to continuously increase your operational efficiency and provide better quality of experience to your customers:

The FibeAir IP-20C is a highly versatile, compact and all-outdoor wireless backhaul node that suits any network deployment scenario, from aggregation sites to small cell backhaul, at LTE, LTE-Advanced pro and 5G mobile network, as well as any vertical application, and is designed to help you meet a wide variety of challenges throughout your network deployment.

The FibeAir IP-20C operates within the entire microwave communication spectrum, offering high spectral efficiency across licensed and license-exempt microwave communications frequency bands (6-42GHz).

With its multicore technology, the FibeAir IP-20C allows you to continuously increase your operational efficiency and provide better quality of experience to your customers:

Product Features

The FibeAir IP-20C is an all-packet point-to-point wireless backhaul nodeand is MEF 2.0 certified. Itis offered with a basic security package. For a comprehensive set of security capabilities, please refer to the FibeAir IP-20 Assured Platform.

Radio INFO >

6GHz to 42 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM |3.5 up to 80MHz channels| 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees

User interfaces INFO >

3x FE/GbE interfaces and an external management connection

Networking INFO >

All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Operating system INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

Product Features

The FibeAir IP-20C is an all-packet point-to-point wireless backhaul node and is MEF 2.0 certified. It is offered with a basic security package. For a comprehensive set of security capabilities, please refer to the FibeAir IP-20 Assured Platform.

Radio INFO >

6GHz to 42 GHz | Multi-core technology | Seamless 10-step hitless ACM | QPSK–2048QAM |3.5 up to 56MHz channels| 2Gbps radio capacity | Two integrated radio carriers in a single compact enclosure| Up to 8 carriers, in a multi-carrier configuration (4xIP-20C) | Integrated single unit XPIC | 4X4 LoS MIMO quadrupling radio capacity, using only 2 radio units | Advanced Frequency Reuse – enhancing network-wide spectral efficiency by allowing re-use of the same frequency at two adjacent links with angular separation of 15 degrees

User Interfaces INFO >

3x FE/GbE interfaces and an external management connection

Networking INFO >

All packet solution| Integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 certified | Up to 30% more capacity using Header De-Duplication | Carrier-grade service resiliency (G.8032, MSTP) | Sync-E and 1588 synchronization | ITU-T Y.1731 fault and performance management: MEF 35 | High resiliency to bursty LTE/LTE-A traffic using ultra-deep buffers | Service Assurance for strict SLAs utilizing Hierarchical Quality of Service (H-QoS)

Operating System INFO >

The FibeAir IP-20 platform features the unified CeraOS operating system, which streamlines wireless backhaul network modernization, operation and management

<

PRODUCT HIGHLIGHTS:



With its multicore technology, the FibeAir IP-20C allows you to continuously increase your operational efficiency and provide better quality of experience to your customers:

  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required
  • Deliver the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – enabling 1Gbps radio capacity over a single 30MHz channel or 2Gbps over a single 60MHz
  • Deploy sites where needed, removing congested wireless backhaul constraints by doubling the reuse of microwave frequency channels and using Advanced Frequency Reuse technology embedded in the multicore technology
  • Reduce energy costs by up to 40%
  • Reduce tower or roof-top equipment footprint by 50% in dual carrier configurations

PRODUCT HIGHLIGHTS:

With its multicore technology, the FibeAir IP-20C allows you to continuously increase your operational efficiency and provide better quality of experience to your customers:

  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required
  • Deliver the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – enabling 1Gbps radio capacity over a single 30MHz channel or 2Gbps over a single 60MHz
  • Deploy sites where needed, removing congested wireless backhaul constraints by doubling the reuse of microwave frequency channels and using Advanced Frequency Reuse technology embedded in the multicore technology
  • Reduce energy costs by up to 40%
  • Reduce tower or roof-top equipment footprint by 50% in dual carrier configurations
