IP-50C

Universal multicore microwave radio for all deployment scenarios

Universal multicore microwave radio for all deployment scenarios

product image

overview

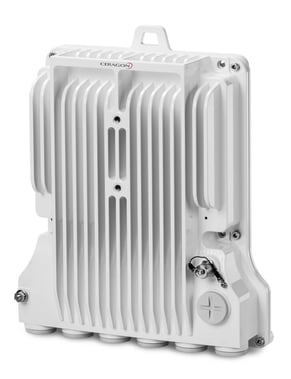

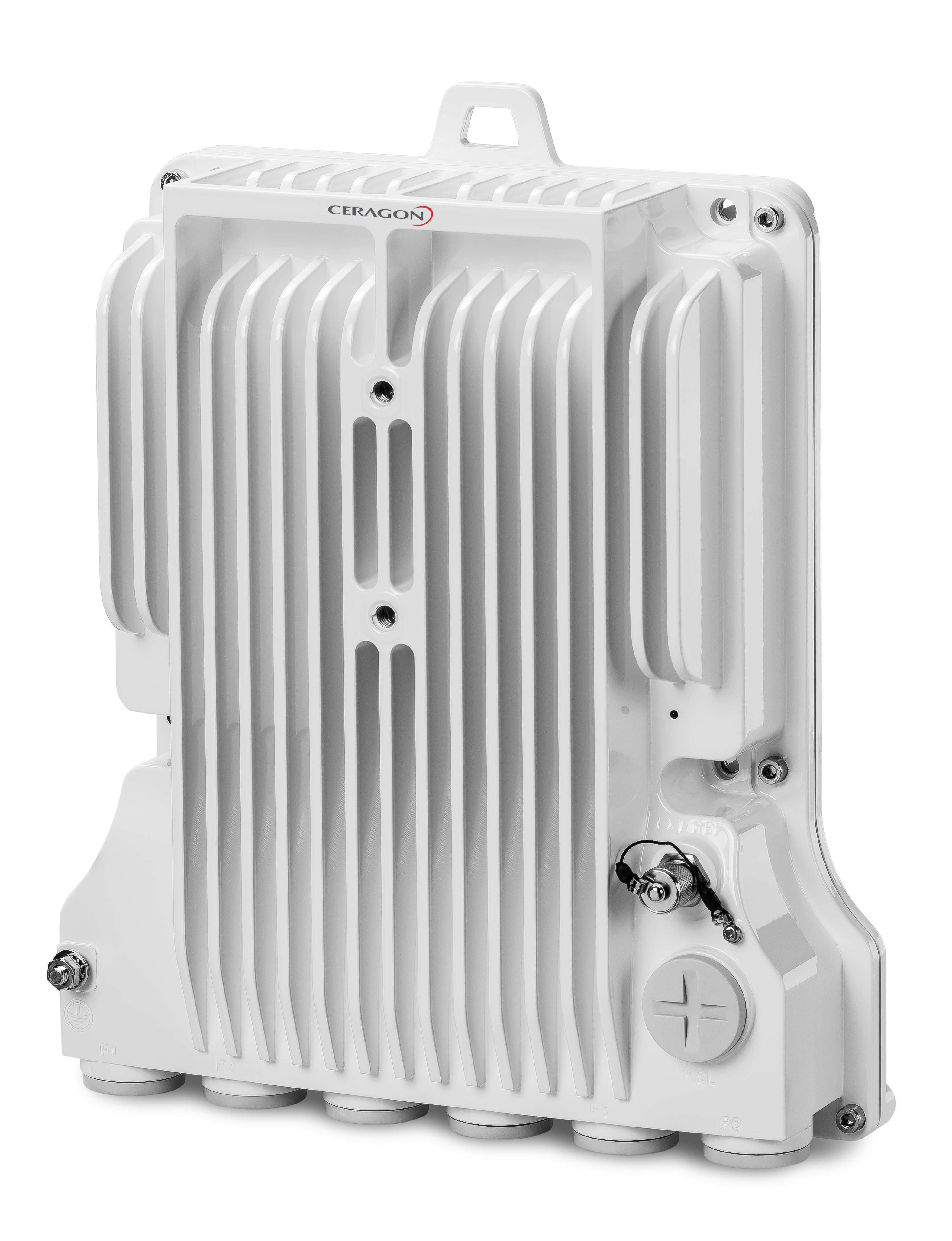

The world’s best all-outdoor microwave radio just became better. The IP-50C universal microwave radio is the evolution of the IP-20C, the world’s best-selling wireless backhaul outdoor radio. The IP-50C brings new capabilities that allow you to base your entire network, from small cells to massive aggregation sites, on this single radio – reducing complexity, costs and time to revenue.

The IP-50C can be deployed as a stand-alone all-outdoor radio, or combined with an indoor unit (the IP-50FX) as a scalable aggregation node and cell site router. Either way, you can leverage all the benefits of Ceragon’s cutting-edge multicore technology.

A unique configuration of an all-outdoor 4+0 node (utilizing layer-1 carrier aggregation) allows you to achieve up to 8Gbps by layer-1 carrier bonding without a need for an additional indoor unit. Moreover, using the IP-50C, you may upgrade your existing all-outdoor installed base (whether Ceragon IP-20C 2+0 or any third-party all-outdoor) into 4+0 using layer-1 carrier bonding. This enables you to turn more sites in your network into all-outdoor sites, thereby reducing time to market, lowering CAPEX and OPEX, and simplifying site acquisition tasks.

The world’s best all-outdoor microwave radio just became better. The IP-50C universal microwave radio is the evolution of the IP-20C, the world’s best-selling wireless backhaul outdoor radio. The IP-50C brings new capabilities that allow you to base your entire network, from small cells to massive aggregation sites, on this single radio – reducing complexity, costs and time to revenue.

The IP-50C can be deployed as a stand-alone all-outdoor radio, or combined with an indoor unit (the IP-50FX) as a scalable aggregation node and cell site router. Either way, you can leverage all the benefits of Ceragon’s cutting-edge multicore technology.

A unique configuration of an all-outdoor 4+0 node (utilizing layer-1 carrier aggregation) allows you to achieve up to 8Gbps by layer-1 carrier bonding without a need for an additional indoor unit. Moreover, using the IP-50C, you may upgrade your existing all-outdoor installed base (whether Ceragon IP-20C 2+0 or any third-party all-outdoor) into 4+0 using layer-1 carrier bonding. This enables you to turn more sites in your network into all-outdoor sites, thereby reducing time to market, lowering CAPEX and OPEX, and simplifying site acquisition tasks.

Radio INFO >
  • System capacity: 8Gbps (in 4+0 configuration)
  • Supported frequency bands: 6-42GHz
  • Supported channel spacing: 3.5-224MHz
  • ACM steps: 12, BPSK-4096QAM
USER INTERFACE INFO >
  • 1/10GbE (electric)
  • 10GbE (SFP+)
  • 1/2.5GbE (SFP)
  • 10GbE extension port for advanced features (SFP+)
NETWORKING INFO >
  • Networking capacity: 16Gbps
  • Layer-1 carrier bonding: Up to 4+0 in an all-outdoor configuration using a single cable
  • Networking: integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 compliant | up to 30% more capacity using header deduplication | carrier-grade service resiliency (G.8032, MSTP) | SyncE and 1588 synchronization | ITU-T Y.1731 fault and performance management (MEF 35) | SDN | layer 3 (using IP-50FX)
  • Security: AES-256 radio encryption | secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | secured architecture and software design |advanced authentication and identification management
Radio INFO >
  • System capacity: 8Gbps (in 4+0 configuration)
  • Supported frequency bands: 6-42GHz
  • Supported channel spacing: 3.5-224MHz
  • ACM steps: 12, BPSK-4096QAM
USER INTERFACE INFO >
  • 1/10GbE (electric)
  • 10GbE (SFP+)
  • 1/2.5GbE (SFP)
  • 10GbE extension port for advanced features (SFP+)
Networking INFO >
  • Networking capacity: 16Gbps
  • Layer-1 carrier bonding: Up to 4+0 in an all-outdoor configuration using a single cable
  • Networking: integrated Carrier Ethernet switching capabilities, MEF Carrier Ethernet 2.0 compliant | up to 30% more capacity using header deduplication | carrier-grade service resiliency (G.8032, MSTP) | SyncE and 1588 synchronization | ITU-T Y.1731 fault and performance management (MEF 35) | SDN | layer 3 (using IP-50FX)
  • Security: AES-256 radio encryption | secured protocols and management interfaces (HTTPS, TLS, SSH, SNMPv3) | secured architecture and software design |advanced authentication and identification management
